SC-NeuroCore: Bit-True Stochastic Computing Simulation and FPGA Synthesis for Spiking Neural Networks

Miroslav Šotek · ORCID 0009-0009-3560-0851 · Anulum Research, Independent Researcher

Date: 17 March 2026

Status: JOSS preprint — formal submission planned for June 2026

DOI (software): 10.5281/zenodo.18906614

Summary

SC-NeuroCore is an open-source framework for designing, simulating, and deploying neuromorphic circuits based on stochastic computing (SC). It provides bit-true Python simulation that matches synthesisable Verilog RTL cycle-exactly, a high-performance Rust SIMD engine with PyO3 bindings, and an IR compiler that emits SystemVerilog for FPGA targets. The framework bridges GPU-based SNN training to hardware deployment: networks trained with surrogate gradients in PyTorch are quantised to Q8.8 fixed-point and exported to stochastic bitstream weights for FPGA synthesis.

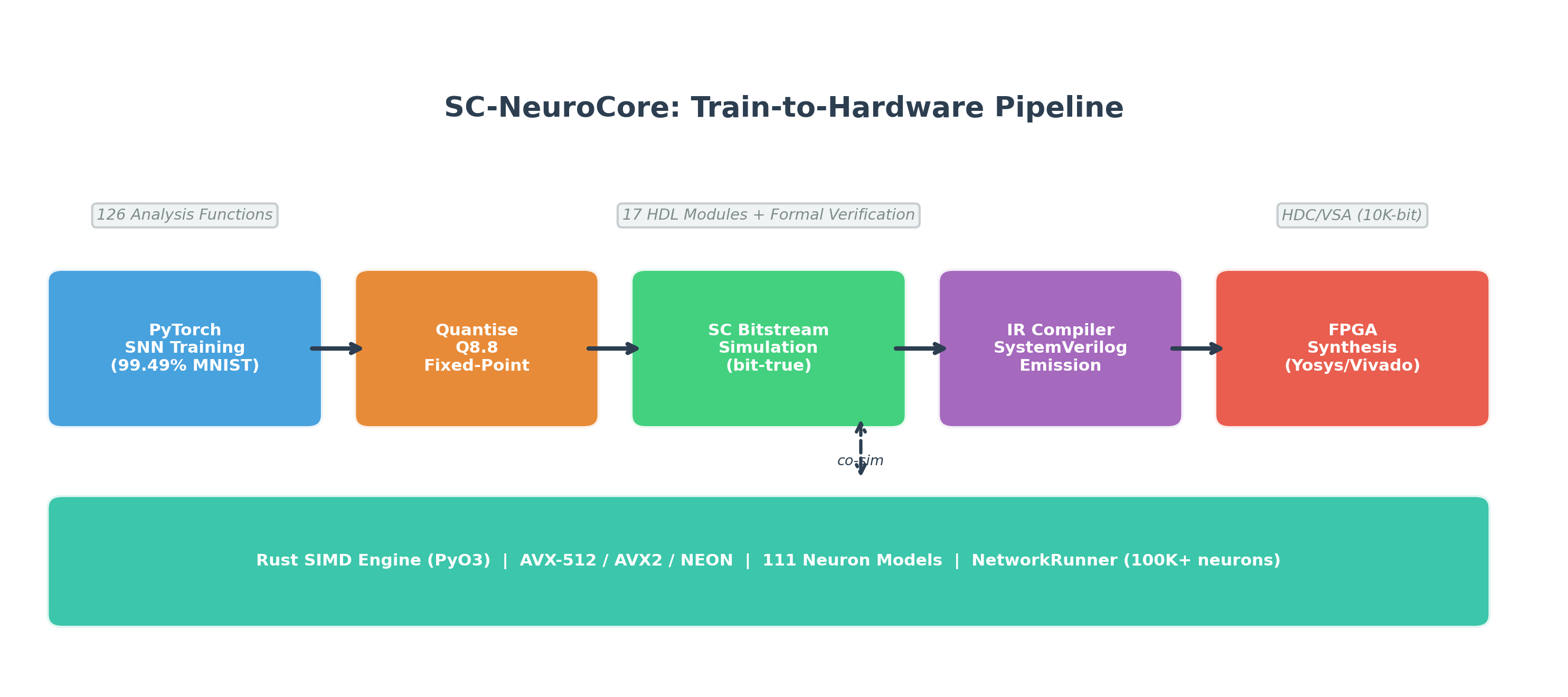

SC-NeuroCore train-to-hardware pipeline. Float-domain surrogate gradient training produces SNN weights, which are quantised to Q8.8 fixed-point, simulated as SC bitstreams with bit-exact RTL correspondence, compiled to SystemVerilog via the IR compiler, and synthesised for FPGA targets. The Rust SIMD engine accelerates all simulation stages. A bidirectional co-simulation link verifies Python–Verilog equivalence at every timestep.

Statement of Need

Stochastic computing encodes values as random bit-streams and performs arithmetic with single logic gates — an AND gate multiplies two probabilities, a multiplexer adds them (Alaghi & Hayes, 2013). SC circuits are area-efficient and fault-tolerant, attractive for edge neuromorphic inference where power and silicon area are constrained (Smithson et al., 2019).

No existing open-source tool provides an integrated SC design flow. Researchers must manually translate SC algorithms into HDL, write ad-hoc testbenches, and hope the stochastic behaviour of their Python model matches the hardware. SC-NeuroCore closes this gap with bit-true simulation, SIMD-accelerated Rust kernels, an IR compiler targeting Xilinx and Intel FPGAs, and a surrogate gradient training module that exports directly to SC bitstream weights — a train-to-hardware path that snnTorch (Eshraghian et al., 2023), Norse (Pehle & Pedersen, 2021), Brian2 (Stimberg et al., 2019), NEST (Gewaltig & Diesmann, 2007), and Lava (Intel, 2021) do not provide.

The target audience is (a) hardware designers prototyping neuromorphic edge devices who need a bit-true simulation-to-synthesis path, and (b) SNN researchers who want cycle-accurate hardware models rather than abstract differential-equation solvers.

State of the Field

Neuromorphic simulators — NEST, Brian2, and Lava — target event-driven spiking network simulation at the differential-equation level. SNN training libraries snnTorch and Norse provide gradient-based training on GPU but operate on continuous-valued membrane potentials, not hardware bit-streams. None model stochastic bitstream-level computation or emit synthesisable RTL.

SC-NeuroCore operates at a different abstraction: individual AND/OR gates on bit-streams with direct correspondence to synthesised hardware. A Brunel balanced-network benchmark (Brunel, 2000) shows SC-NeuroCore's Numba JIT backend completes a 1,000-neuron simulation in 0.35 s versus Brian2's 1.38 s (4.0x speedup), with firing rates matching within 1%. At 10,000 neurons Brian2 is 1.35x faster (5.9 s vs 4.4 s), as its compiled C++ codegen scales better for large sparse networks. SC-NeuroCore targets FPGA-scale networks (≤5K neurons) where bit-exact RTL co-simulation matters.

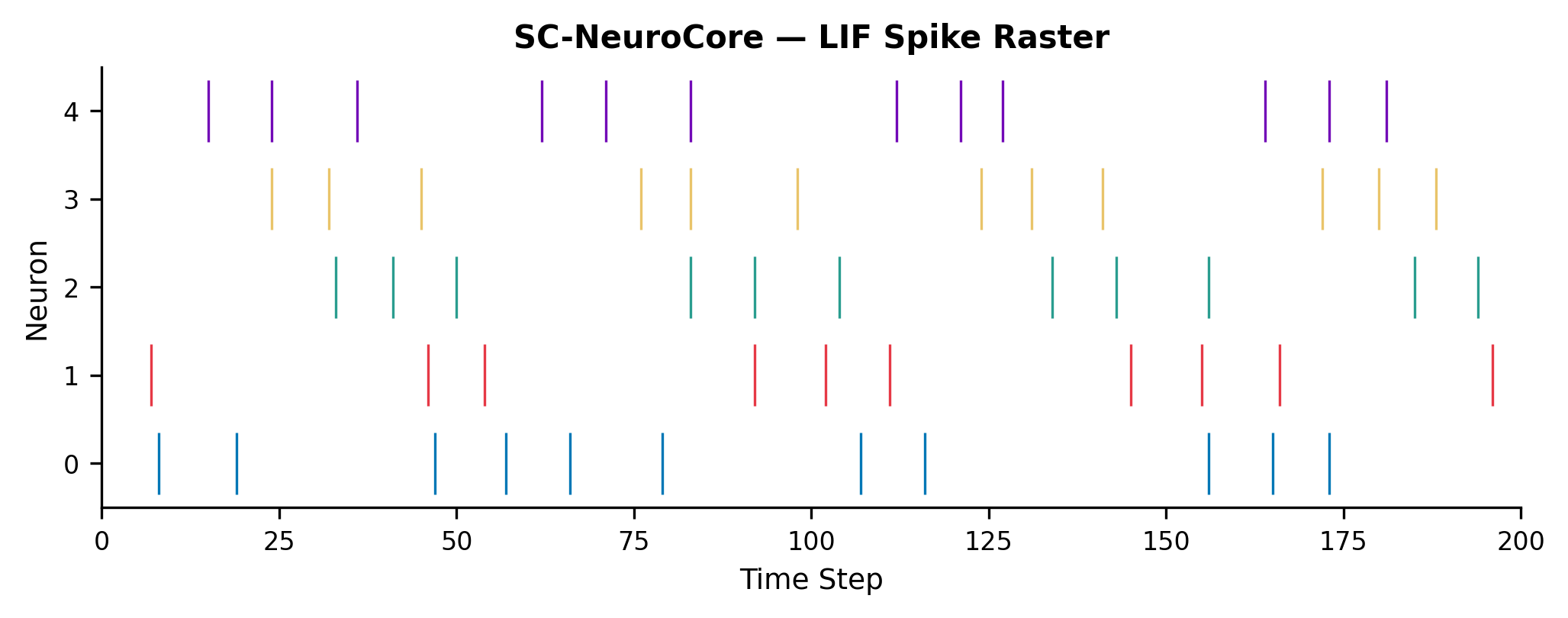

Spike raster from a 5-neuron LIF network driven by sinusoidal input, simulated with SC-NeuroCore's stochastic bitstream encoding. Each neuron uses a decorrelated 16-bit LFSR seed.

For surrogate gradient training, SC-NeuroCore's training module matches snnTorch on a standard FC-SNN benchmark (95.5% vs 95.8% MNIST, identical 784→128→128→10 architecture, 10 epochs). With learnable membrane time constants (Fang et al., 2021) the FC-SNN reaches 97.7%; a convolutional SNN architecture reaches 99.49%. The to_sc_weights() method exports trained float weights normalised to [0, 1] for SC bitstream deployment.

Software Design

SC-NeuroCore is structured in five layers, each independently usable:

Python API (pip install sc-neurocore): 38 public symbols including BitstreamEncoder, StochasticLIFNeuron, SCDenseLayer, and VectorizedSCLayer. All SC primitives use a 16-bit maximal-length LFSR (polynomial x^16 + x^14 + x^13 + x^11 + 1, period 65,535) with decorrelated seed assignment (Golomb, 1967). Fixed-point arithmetic uses Q8.8 signed two's complement. An optional training subpackage provides LIF, adaptive LIF (Bellec et al., 2020), and recurrent LIF cells with surrogate gradient backward passes and learnable membrane parameters. A library of 122 neuron models — from McCulloch-Pitts (1943) through Hodgkin-Huxley (1952), Izhikevich (2003), and 9 hardware chip emulators (Loihi, TrueNorth, BrainScaleS, SpiNNaker, Akida) — covers 82 years of computational neuroscience.

Rust Engine (sc_neurocore_engine): A PyO3-bound Rust crate providing SIMD-accelerated bitstream operations, 111 neuron model implementations, and a NetworkRunner with CSR-sparse projections and Rayon-parallel population stepping scaling to 100K+ neurons. Runtime feature detection selects AVX-512, AVX2, or NEON paths. A Criterion benchmark measures 41.3 Gbit/s bitstream packing on AVX-512. Cross-compiled wheels target Linux, macOS, and Windows across Python 3.10–3.14.

Network Simulation (sc_neurocore.network): A Population-Projection-Network engine with three backends (Python/NumPy, Rust NetworkRunner, MPI via mpi4py), six topology generators, a model zoo with 10 pre-built configurations, 3 pre-trained weight sets, and 125 spike train analysis functions covering the combined scope of Elephant (Denker et al., 2023) and PySpike.

Verilog RTL (hdl/): 19 synthesisable modules including sc_lif_neuron.v (Q8.8 LIF), sc_dense_matrix_layer.v, and sc_neurocore_top.v (AXI-Lite wrapper). Yosys synthesis of sc_neurocore_top yields 3,673 LUTs on Xilinx 7-series. SymbiYosys formal verification covers 67 properties across 7 modules.

IR Compiler: Parses a graph-based intermediate representation, verifies structural invariants, and emits synthesisable SystemVerilog targeting Xilinx and Intel FPGAs.

NIR Bridge (sc_neurocore.nir_bridge): Imports NIR (Neuromorphic Intermediate Representation) graphs, mapping all 18 primitives (LIF, IF, LI, CubaLIF, CubaLI, Affine, Linear, Conv1d, Conv2d, Scale, Threshold, Flatten, Delay, SumPool2d, AvgPool2d, Integrator, Input, Output) to SC-NeuroCore equivalents with a recursive graph parser and topological execution. To our knowledge, SC-NeuroCore is the first NIR backend to combine 100% primitive coverage with an FPGA synthesis path, enabling models from SpikingJelly, snnTorch, and Norse to target reconfigurable hardware.

A minimal end-to-end example:

from sc_neurocore import BitstreamEncoder, StochasticLIFNeuron
enc = BitstreamEncoder(data_width=16, fraction=8)
neuron = StochasticLIFNeuron()
for t in range(100):
    spike, v = neuron.step(leak_k=1, gain_k=256, i_t=50, noise_in=0)

The key design trade-off is determinism over speed: SC-NeuroCore maintains bit-exact correspondence between Python simulation and Verilog RTL at every timestep, enabling co-simulation workflows where a checker script verifies bit-exact equivalence across all LFSR seeds and neuron states.

Availability

SC-NeuroCore is available on PyPI (pip install sc-neurocore) and GitHub under AGPL-3.0-or-later with a commercial license option. Documentation is hosted on GitHub Pages. The repository includes a contributing guide, 51 tutorials, 22 examples, and 8 Jupyter notebooks including an interactive neuron model explorer and an NIR bridge walkthrough. A Zenodo-archived DOI is available: 10.5281/zenodo.18906614.

Quality Assurance

SC-NeuroCore maintains 2,155 Python and 373 Rust tests with 100% line coverage enforced by CI on every push. The test suite includes unit tests, integration tests, property-based tests (Hypothesis), cross-layer coupling tests, and hardware co-simulation checks. Static analysis comprises Ruff linting, Bandit security scanning, SPDX license header validation, and CodeQL. Thirteen CI workflows — all with SHA-pinned GitHub Actions — guard every merge. OpenSSF Scorecard monitors supply-chain security.

AI Disclosure

This project uses LLMs for advanced control mechanisms and GitHub handling. All output is reviewed, tested, and verified by the project author.

Acknowledgements

The SC primitives build on Alaghi and Hayes (2013) and Smithson et al. (2019). Neuron models follow Gerstner et al. (2014), Izhikevich (2003), Bellec et al. (2020), and Fang et al. (2021). Benchmarks follow NeuroBench methodology (Yik et al., 2023). This work was self-funded.

References

  • Alaghi, A. & Hayes, J.P. (2013). Survey of Stochastic Computing. ACM TECS, 12(2s), 1–19. doi:10.1145/2465787.2465794
  • Bellec, G. et al. (2020). A Solution to the Learning Dilemma for Recurrent Networks of Spiking Neurons. Nature Communications, 11, 3625. doi:10.1038/s41467-020-17236-y
  • Brunel, N. (2000). Dynamics of Sparsely Connected Networks of Excitatory and Inhibitory Spiking Neurons. J. Comput. Neurosci., 8(3), 183–208. doi:10.1023/A:1008925309027
  • Denker, M., Yegenoglu, A. & Gruen, S. (2023). Elephant: Electrophysiology Analysis Toolkit. Neuroinformatics. doi:10.12751/nncn.bc2018.0034
  • Eshraghian, J.K. et al. (2023). Training Spiking Neural Networks Using Lessons From Deep Learning. Proc. IEEE, 111(9), 1016–1054. doi:10.1109/JPROC.2023.3308088
  • Fang, W. et al. (2021). Incorporating Learnable Membrane Time Constants to Enhance Learning of Spiking Neural Networks. NeurIPS, 34, 2661–2673. doi:10.48550/arXiv.2007.05785
  • Gerstner, W. et al. (2014). Neuronal Dynamics. Cambridge University Press. doi:10.1017/CBO9781107447615
  • Gewaltig, M.-O. & Diesmann, M. (2007). NEST (Neural Simulation Tool). Scholarpedia, 2(4), 1430. doi:10.4249/scholarpedia.1430
  • Golomb, S.W. (1967). Shift Register Sequences. Holden-Day.
  • Hodgkin, A.L. & Huxley, A.F. (1952). A Quantitative Description of Membrane Current. J. Physiol., 117(4), 500–544. doi:10.1113/jphysiol.1952.sp004764
  • Intel Corporation (2021). Lava: An Open-Source Software Framework for Neuromorphic Computing. github.com/lava-nc/lava
  • Izhikevich, E.M. (2003). Simple Model of Spiking Neurons. IEEE Trans. Neural Netw., 14(6), 1569–1572. doi:10.1109/TNN.2003.820440
  • McCulloch, W.S. & Pitts, W. (1943). A Logical Calculus of the Ideas Immanent in Nervous Activity. Bull. Math. Biophys., 5(4), 115–133. doi:10.1007/BF02478259
  • Pehle, C. & Pedersen, J.E. (2021). Norse — A Deep Learning Library for Spiking Neural Networks. doi:10.5281/zenodo.4422025
  • Smithson, S.C. et al. (2019). Neural Networks in Stochastic Computing: A Survey. IEEE IoT Journal, 6(3), 4463–4473. doi:10.1109/JIOT.2018.2884863
  • Stimberg, M. et al. (2019). Brian 2, an Intuitive and Efficient Neural Simulator. eLife, 8, e47314. doi:10.7554/eLife.47314
  • Šotek, M. (2026). SC-NeuroCore: A Deterministic Stochastic Computing Framework for Neuromorphic Hardware Design. Zenodo. doi:10.5281/zenodo.18906614
  • Yik, J. et al. (2023). NeuroBench: A Framework for Benchmarking Neuromorphic Computing Algorithms and Systems. IEEE ICRC. doi:10.48550/arXiv.2304.04640
